UI Builder

Quick Layout is a visual and alignment toolkit for Godot 4.7+'s Control-based UI. Build screens by dragging nodes onto a live schematic canvas instead of hunting through the Create Node dialog, then align, distribute, snap, and theme them from a dedicated dock — all fully undoable.

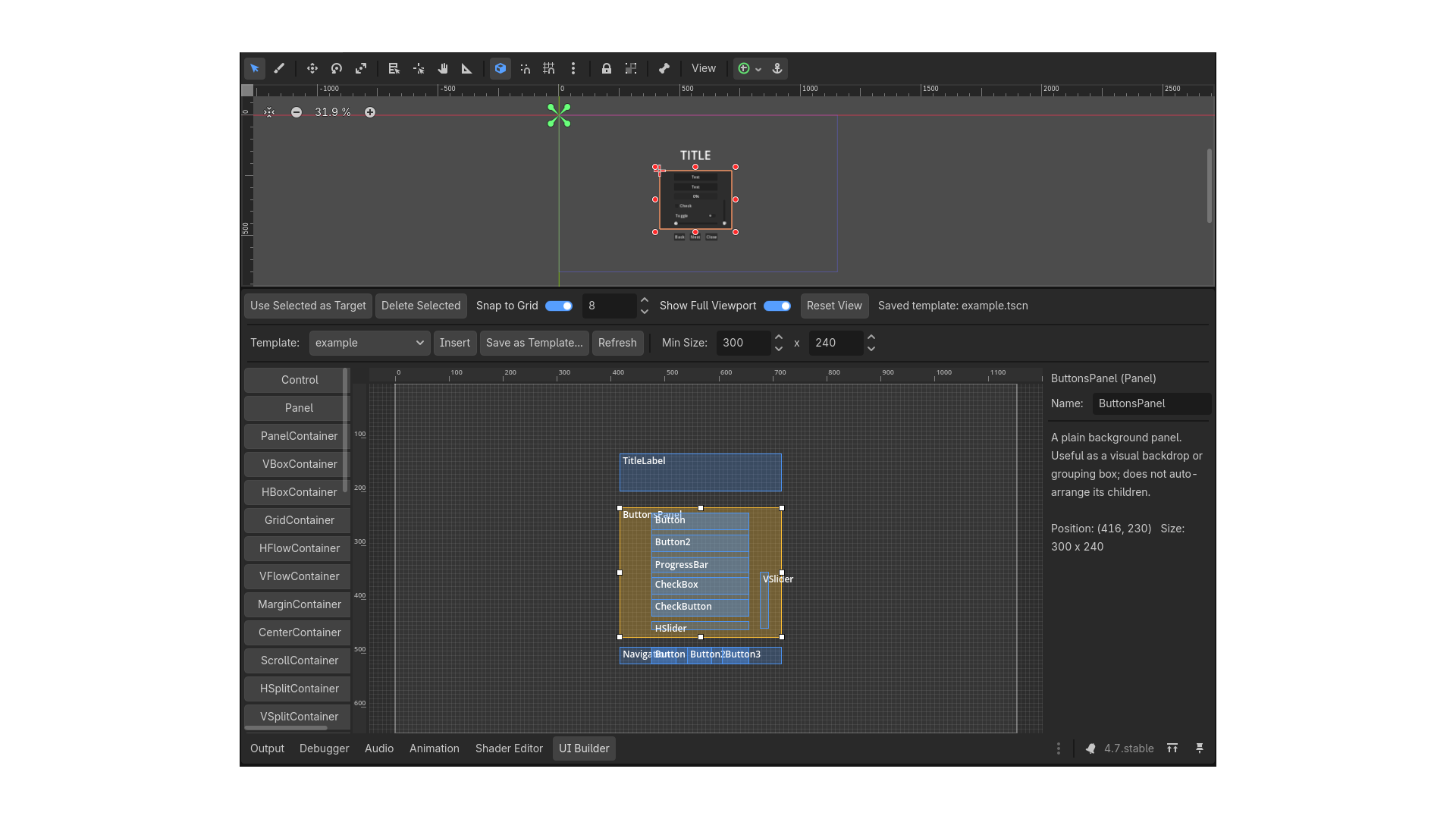

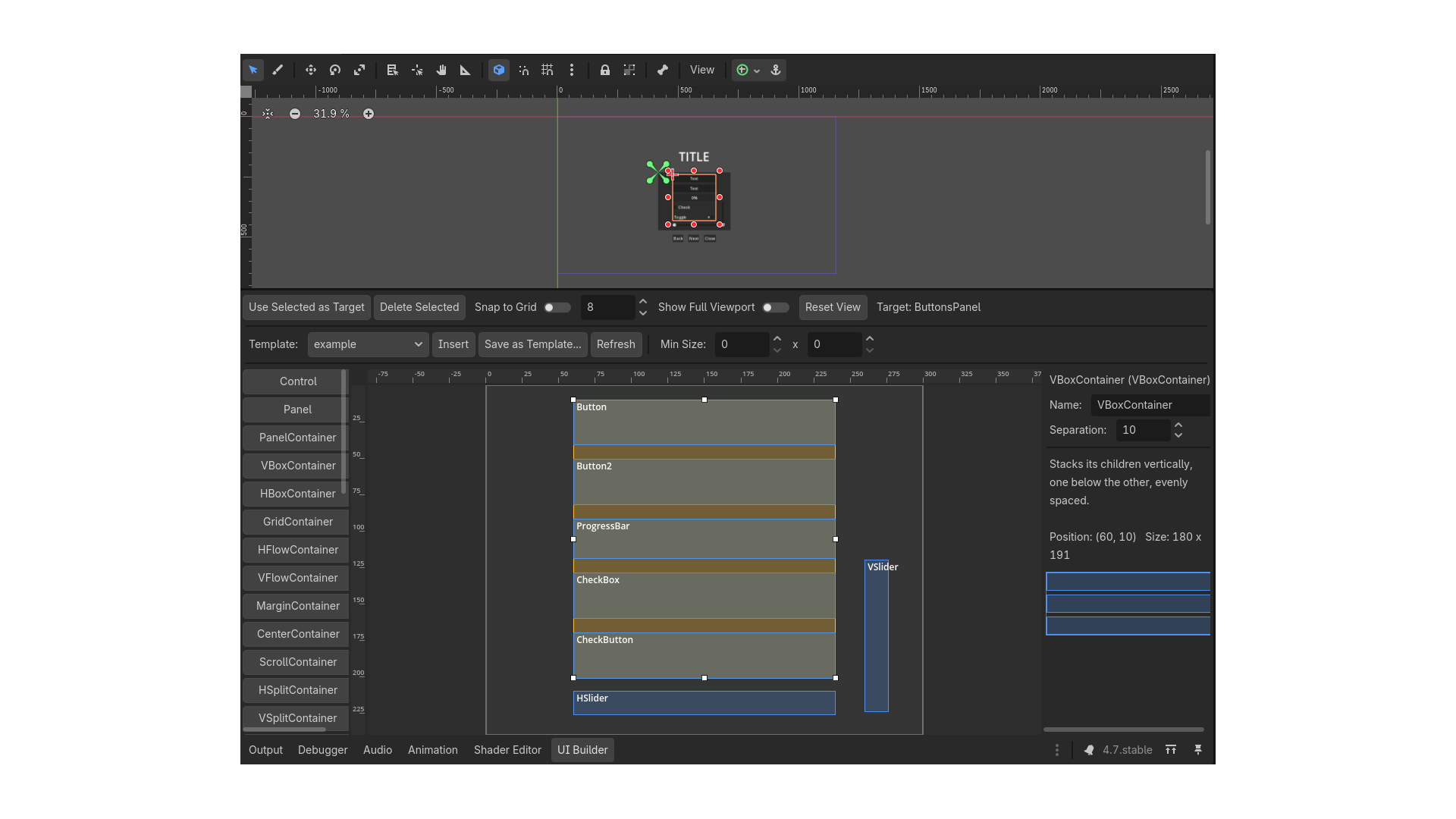

UI Builder (bottom panel)

Drag-and-drop creation from a 37-type palette (containers, buttons, inputs, etc.) directly onto a pan/zoomable canvas

Rulers and a real viewport outline, so you always see true scale and aspect ratio

Live resize, reposition, and reorder — everything is a real node, not a preview

Reusable UI/HUD templates (ships with 3 starter examples) you can grow into your own library

Per-node info panel with inline rename, custom min size, and container separation editing

Ctrl+D duplication, right-click context menu, full keyboard/mouse shortcuts

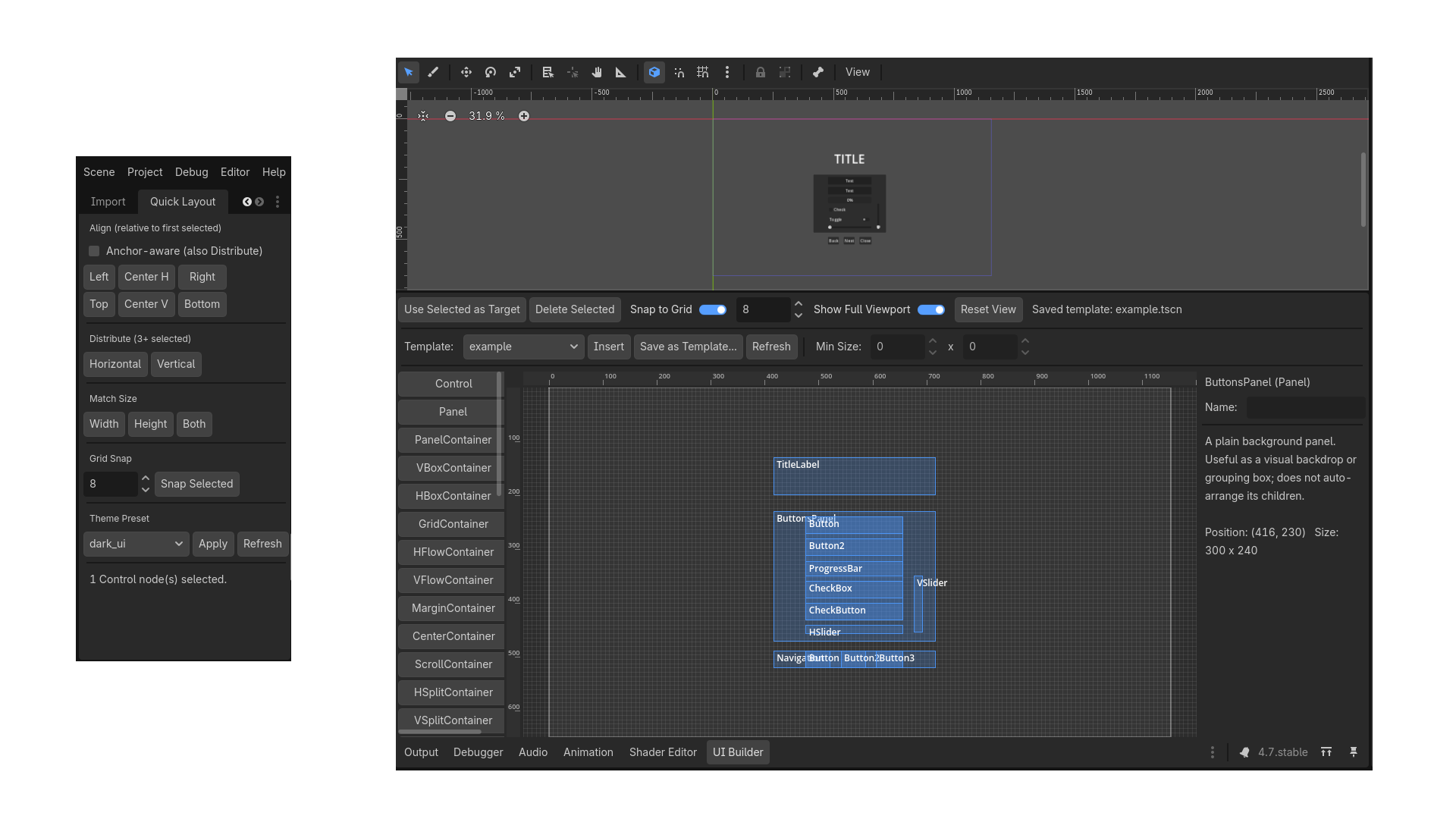

Alignment Tools (left dock)

Align, distribute, and match size across selected controls

Grid snap and anchor-aware positioning (keeps alignment correct even if the parent resizes later)

One-click theme presets (ships with dark_ui and light_ui), expandable with your own

Every operation goes through Godot's undo/redo manager. MIT licensed.
